Pseudo Noide Generator block

Contents

• Pseudo Noide Generator block
  • Palette
  • Description
  • Dialog box
  • Default properties
  • Interfacing function
  • Computational function
  • See also
  • Authors

Palette

• Sources - Sources palette

Description

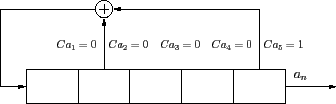

Figure 1: Maximal Linear Right Shift Register

Dialog box

• Vector of Size of outputs
  Type 'vec' of size -1. The length of sequences.

• Vector of Length of register
  Type 'vec' of size -1. The length of register(s).

• Vector of Initial condition register
  Type 'vec' of size -1. The initial state of register(s) in integer value.

• Vector of coefficients register
  Type 'vec' of size -1. The coefficients of register(s) in integer value.

Default properties

• always active: no
• direct-feedthrough: no
• zero-crossing: no
• mode: no
• regular outputs:
  - port 1 : size [31,1] / type 1

• number/sizes of activation inputs: 1
• number/sizes of activation outputs: 0
• continuous-time state: no
• discrete-time state: yes
• object discrete-time state: no
• name of computational function: genmllsrs

Interfacing function

• MODNUMCOS/macros/scicos_blocks/Sources/GENMLLSRS_f.sci [view code]

Computational function

• MODNUMCOS/routines/sources/genmllsrs.c (Type 4) [view code]

See also

• GENGOLD_f - Gold sequence generator block (Scicos Block)

Authors

IRCOM Group Alan Layec
