Spectre de sortie d'un modulateur Sigma-Delta


Contenu

Module

Description

Ce script de simulation permet l'analyse du spectre de sortie d'un modulateur $ \Sigma\Delta$ lorsque le modulateur est excité par un symbole filtré gaussien.

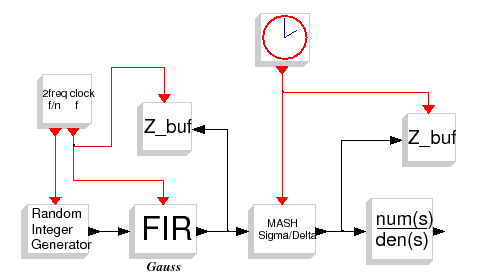

Diagramme(s) Scicos

\epsfig{file=dsm_gauss_sim.eps,width=300pt}
dsm_gauss_sim.cos

Fichier(s) contexte


scs_m.props.context=[
'M=1 '
'Te=1'
'Nech=12'
'order=3'
'Tsym=Te*Nech'
'Nsampl=500'
'Tsampl=Tsym/Nsampl'
'fc=0.03*(1/Tsampl)'
'eps=0.7'
'tau=1/(2*%pi*fc)'
'Nsav=2^16'
'Tfin=Nsav*Tsampl'
];
dsm_gauss_sim_ctxt.sce

Blocs utilisés

Script(s) de simulation


//Define simulation name
sim_name='dsm_gauss_sim';
sim_path='dsm_gauss_sim';
//Load scicos diagram
load(MODNUM+'/simu/'+sim_path+'/'+sim_name+'.cos');
//Tests for scicos version
ierr = execstr('current_version=get_scicos_version()','errcatch')
if ierr==0 then //scilab > 4.1x
 //check version
 if type(scs_m)==17 then
    if find(getfield(1,scs_m)=='version')<>[] then
       if scs_m.version<>'' then
         scicos_ver=scs_m.version
       end
    end
 end
 if current_version<>scicos_ver then
    scs_m=do_version(scs_m,scicos_ver)
 end
end
//Define context
exec(MODNUM+'/simu/'+sim_path+'/'+sim_name+'_ctxt.sce');
context=scs_m.props("context");execstr(context);
//Define Simulation end time
scs_m.props.tf=Tfin;
//Define other variables

for nb_r=1:3
  //substitue context variable to be sweep
  scs_m.props.context=subst_ctxt(scs_m,'order=','order='+string(nb_r));
  //Initialise Info and %scicos_context variable
  Info=list();
  if exists('%scicos_context')==0 then %scicos_context=struct(); end
  //Do simulation with scicos_simulate
  Info=scicos_simulate(scs_m,Info,%scicos_context,"nw");
  //Load result
  myvar=return_state_block(Info,"z_buf");
  if nb_r==1  then
    //draw time domain wave form of gaussian filtered input signal
    scf(10);
    myvart=myvar(1)(1:Nsav);
    plot2d(0:Nsav-1,myvart,rect=[0 -1 Nsav-1 1]);
    //compute fft of gaussian input signal
    DSP1=1/Nsav*abs(fftshift(fft(myvart,-1))^2);
    DSP1_log=10*log10(DSP1(Nsav/2:Nsav));
    //draw output sprectrum of gaussian filtered input signal
    scf(20);
    plot2d(0:Nsav/2,DSP1_log,rect=[0 min(DSP1_log) Nsav/2 max(DSP1_log)]);xgrid();
  end
  //draw time domain wave form of sigma-delta modulator output
  scf(10+nb_r);
  plot2d(Nsav/4:Nsav/4+600,myvar(2)(Nsav/4:Nsav/4+600),rect=[Nsav/4 -2^nb_r Nsav/4+600 2^nb_r]);
  //compute fft of sigma-delta modulator output
  myvart=myvar(2)(1:Nsav);
  DSP2=1/Nsav*abs(fftshift(fft(myvart,-1))^2);
  DSP2_log=10*log10(DSP2(Nsav/2:Nsav));
  //draw output sprectrum of sigma-delta modulator
  scf(20+nb_r);
  plot2d(0:Nsav/2,DSP2_log,rect=[0 min(DSP2_log) Nsav/2 max(DSP2_log)]);xgrid();
end
dsm_gauss_sim.sce

Voir aussi

Auteurs

IRCOM Group Alan Layec
