CODINSERVEC

Scicos Block
fr - eng

Sequence/symbol modulation block

$\epsfig{file=CODINSERVEC_f.eps,height=90pt}$

$\begin{figure}\centering \scalebox{0.7}{% \input{cod_inser_illustr.pstex_t}} \end{figure}$

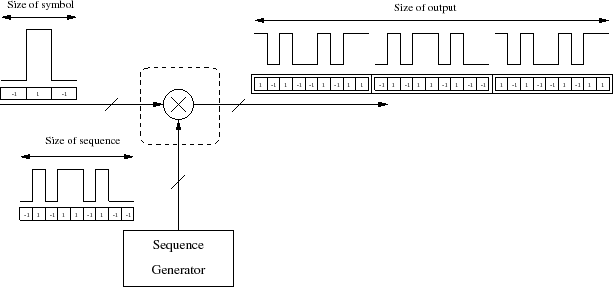

Figure 1: Modulation of a vector of symbol by a sequence

$\begin{figure}\begin{center} \epsfig{file=CODINSERVEC_f_gui.eps,width=270pt} \end{center}\end{figure}$

Size of sequence
Type 'vec' of size -1. Length of the sequence. (number of samples)
Size of symbol
Type 'vec' of size -1. Size of the symbol vector.
Port of sequence
Type 'vec' of size -1. The regular input port (1 or 2) where the sequence is applied.

always active: no
direct-feedthrough: yes
zero-crossing: no
mode: no
regular inputs:
- port 1 : size [31,1] / type 1
- port 2 : size [10,1] / type 1
regular outputs:
- port 1 : size [310,1] / type 1
number/sizes of activation inputs: 0
number/sizes of activation outputs: 0
continuous-time state: no
discrete-time state: no
object discrete-time state: no
name of computational function: codinservec

A. Layec
