Bus-serial converter block

Contents

• Bus-serial converter block
  • Palette
  • Dialog box
  • Default properties
  • Interfacing function
  • Computational function
  • See also
  • Authors

Palette

• Tools - Tools Palette

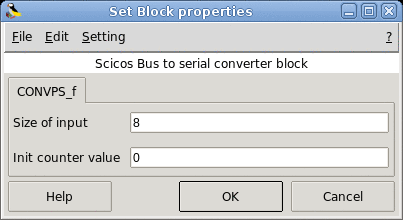

Dialog box

• Size of input
  The size of the regular input port.
  Type 'vec' of size 1.

• Init counter value
  Define the initial sample where the convertion begins.
  Type 'vec' of size 1.

Default properties

• always active: no
• direct-feedthrough: yes
• zero-crossing: no
• mode: no
• regular inputs:
  - port 1 : size [8,1] / type 1

• regular outputs:
  - port 1 : size [1,1] / type 1

• number/sizes of activation inputs: 1
• number/sizes of activation outputs: 0
• continuous-time state: no
• discrete-time state: yes
• object discrete-time state: no
• name of computational function: convps

Interfacing function

• MODNUMCOS/macros/scicos_blocks/Tools/CONVPS_f.sci [view code]

Computational function

• MODNUMCOS/routines/tools/convps.c (Type 2) [view code]

See also

• CONVSP_f - Serial-bus converter block (Scicos Block)

Authors

A. Layec
