GENPULSE

Scicos Block
fr - eng

Pulse Generator block

$\epsfig{file=GENPULSE_f.eps,height=90pt}$

$\begin{figure}\centering \scalebox{0.7}{% \input{genpuls.pstex_t}} \end{figure}$

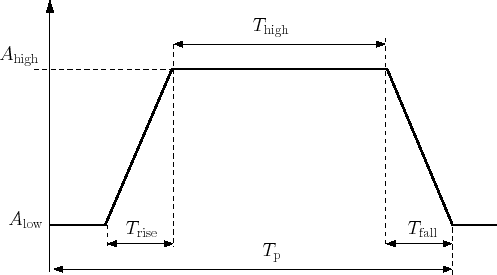

Figure 1: Pulse

$\begin{figure}\begin{center} \epsfig{file=GENPULSE_f_gui.eps,width=260pt} \end{center}\end{figure}$

Rise Time
The Rise Time. Properties : Type 'vec' of size 1.
Fall Time
The Fall Time. Properties : Type 'vec' of size 1.
Time in High State
The High State. Properties : Type 'vec' of size 1.
Delay time
The Delay time. Properties : Type 'vec' of size 1.
Period
The Period. Properties : Type 'vec' of size 1.
Value at high state
The Value at high state. Properties : Type 'vec' of size 1.
Value in low state
The Value in low state. Properties : Type 'vec' of size 1.
