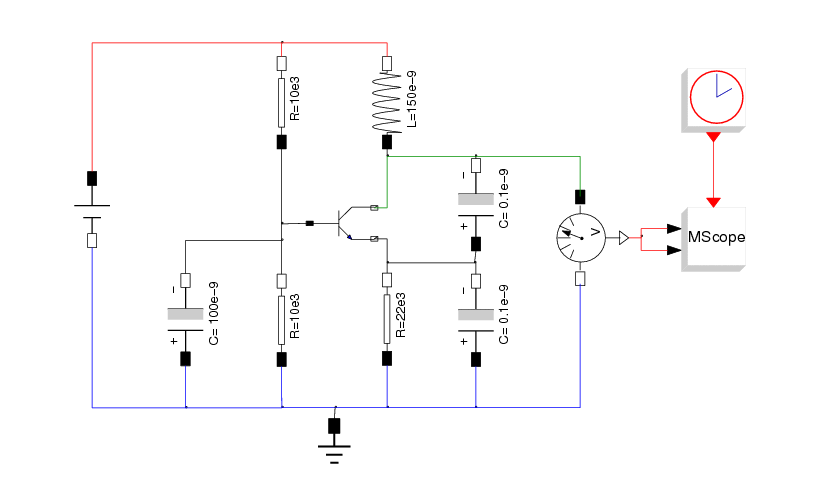

Scicos diagram

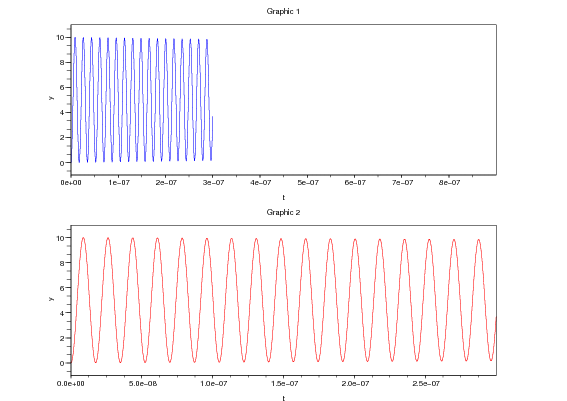

Simulation result

Diagram Information

Number of objects	64
Number of Functional blocks	3
Number of Continuous States	7
Number of blocks containing zero-crossing	2
Diagram contains Sample clock	No

Functional Blocks Information

Simulation functions	Initial Continuous State	Final Continuous State
evtdly4
cmscope
Colpitts_Oscillator_im	0 0 0 0 0 0 0	-0.0000002 -0.0004998 -1.679404 3.6932076 -0.0862841 -0.0000764 -1.6809217
