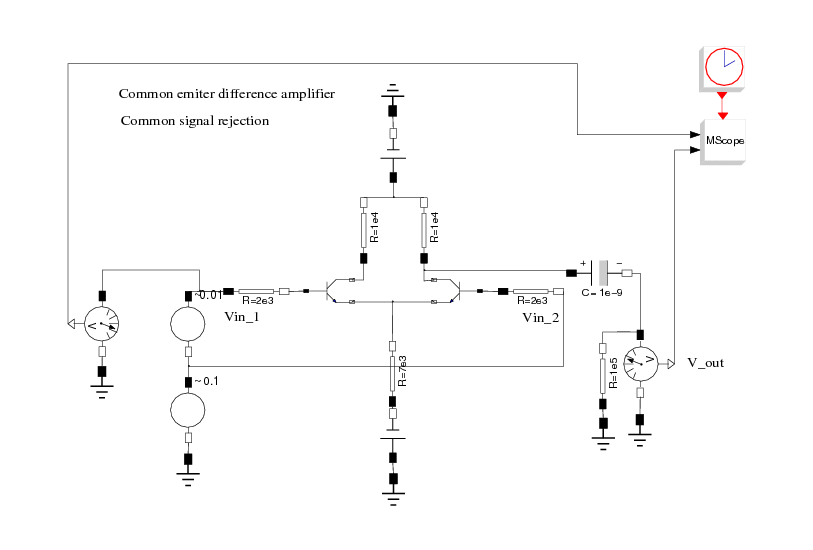

Scicos diagram

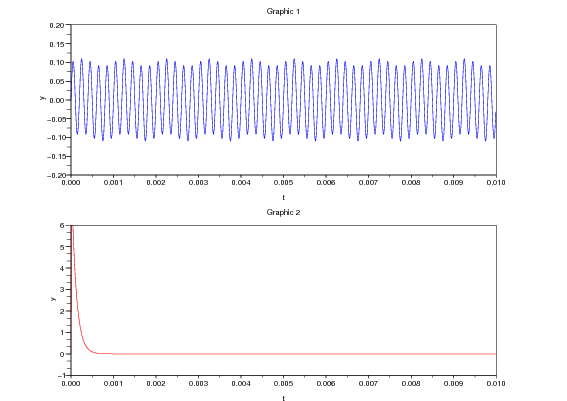

Simulation result

Diagram Information

Number of objects	70
Number of Functional blocks	3
Number of Continuous States	13
Number of blocks containing zero-crossing	6
Diagram contains Sample clock	No

Functional Blocks Information

Simulation functions	Initial Continuous State	Final Continuous State
evtdly4
cmscope
Difference_amplifier_im	0 0 0 0 0 0 0 0 0 0 0 0 0	-3.561662 0.7607199 3.5375204 -3.540812 0.7607223 3.5166728 0.0000121 -0.0000121 -0.0013164 -0.0006462 -0.0006483 3.2894819 -0.0000023
