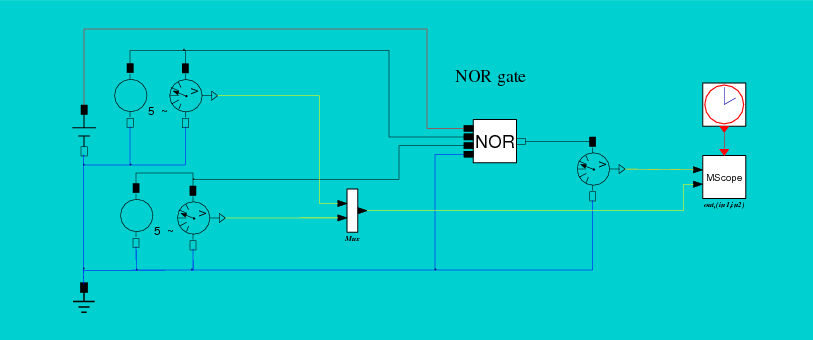

Scicos diagram

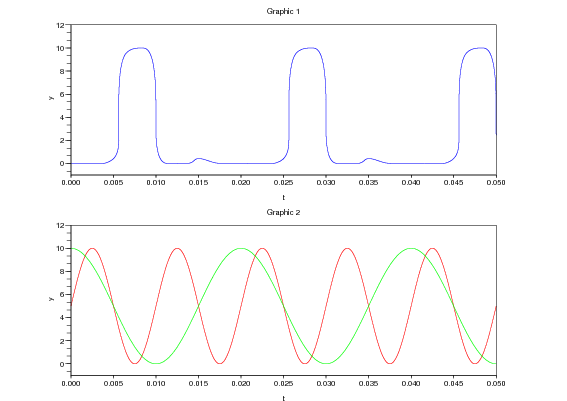

Simulation result

Diagram Information

Number of objects	93
Number of Functional blocks	4
Number of Continuous States	6
Number of blocks containing zero-crossing	2
Diagram contains Sample clock	No

Functional Blocks Information

Simulation functions	Initial Continuous State	Final Continuous State
evtdly
cmscope
multiplex
NOR_Gate_im	0 0 0 0 0 0	2.4419201 -2.6654692 -0.0007207 5.1073893 -4.8926107 -0.0007207
