Scicos Test Center

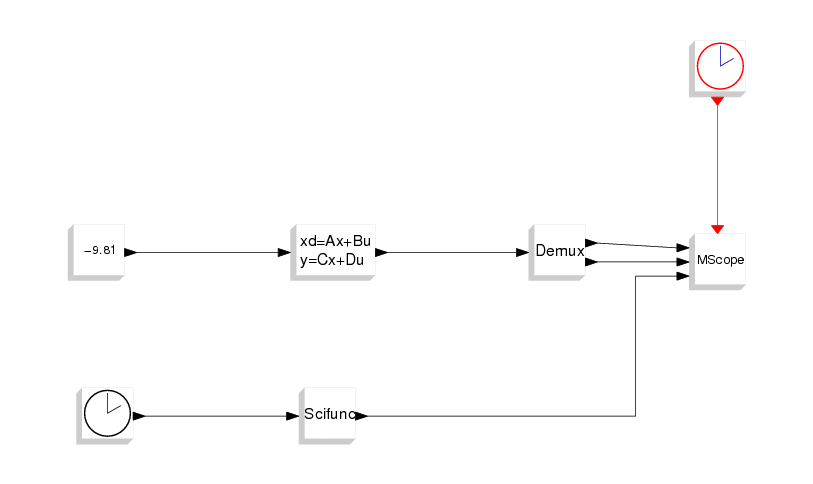

Scicos diagram

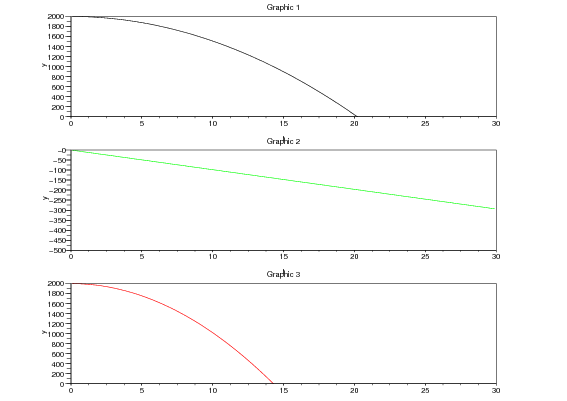

Simulation result

Diagram Information

Number of objects 20
Number of Functional
blocks
7
Number of Continuous States 2
Number of blocks
containing zero-crossing
0
Diagram contains
Sample clock
No

Functional Blocks Information

Simulation functions Initial Continuous State Final Continuous State
cstblk

csslti 2000
0
-2414.5012
-294.3
evtdly

cmscope

timblk

demux

Scilab_function
