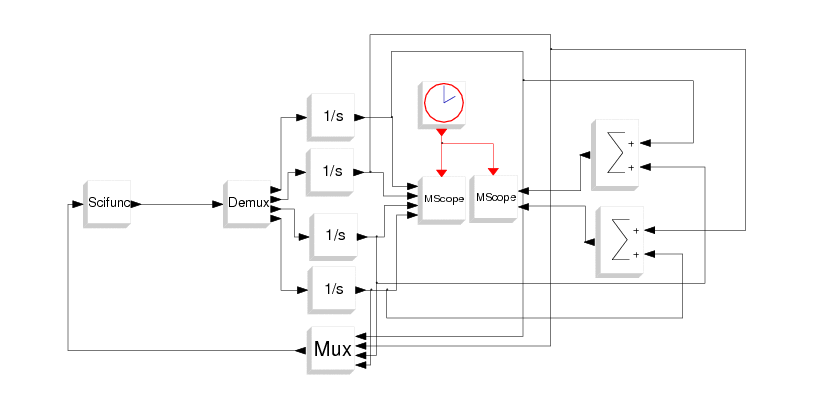

Scicos diagram

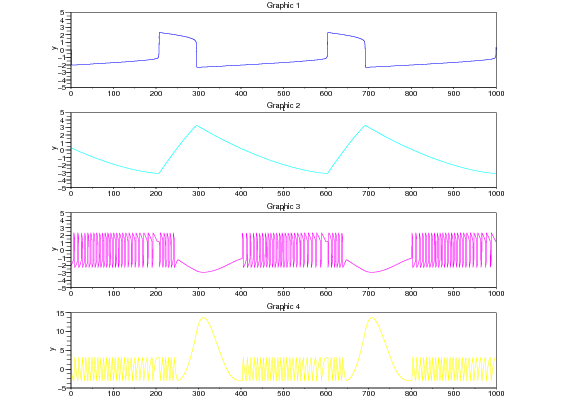

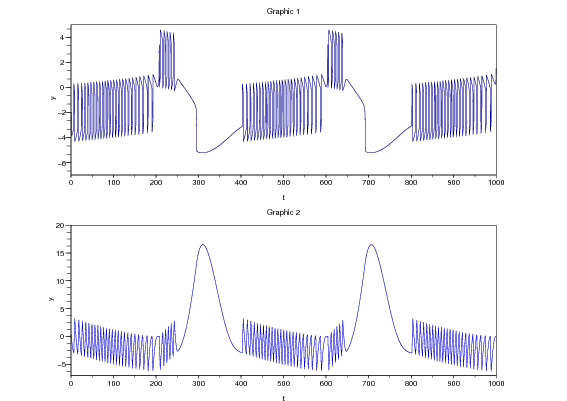

Simulation result
Diagram Information
|
Number of objects
|
92
|
Number of Functional
blocks
|
12
|
|
Number of Continuous States
|
4
|
Number of blocks
containing zero-crossing
|
0
|
Diagram contains
Sample clock
|
No
|
|
Functional Blocks Information
|
Simulation functions
|
Initial Continuous State
|
Final Continuous State
|
|
evtdly
|
|
|
|
cmscope
|
|
|
|
Scilab_function
|
|
|
|
demux
|
|
|
|
integr
|
0.25
|
-3.0910671
|
|
integr
|
0.05
|
1.1668569
|
|
mux
|
|
|
|
integr
|
0.05
|
0.8498925
|
|
integr
|
0.25
|
3.0789881
|
|
cmscope
|
|
|
|
summation
|
|
|
|
summation
|
|
|
|
