Phase Locked Loop palette

Module

• Modnum

Blocks

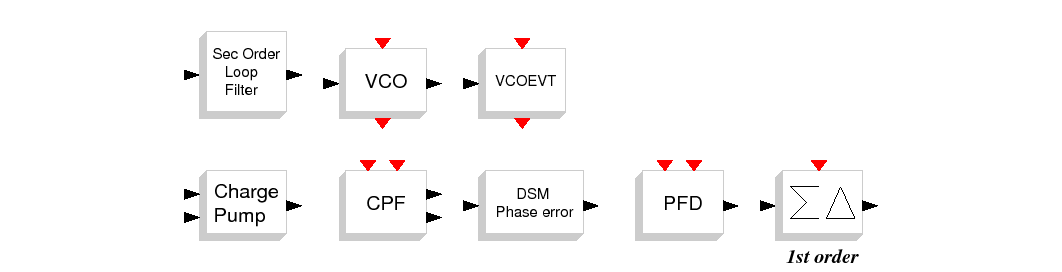

• CHARGEPUMP_f - Charge Pump block
• CPF_f - Tri-state Phase/Frequency Comparator block
• PERRDSM_c - Phase noise computation of a modulated Delta-Sigma fractionnal divider block
• PFD_f - Phase/Frequency tristate Detector block
• SDBLK_c - Delta-Sigma modulator block
• SOLOOPFILTER_f - Second order Loop Filter for PLL type 2 block
• VCO_c - Discrete Voltage Controlled Oscillator block
• VCOEVT_f - Discrete zero crossing block
