CPF_f

Scicos Block
fr - eng

Tri-state Phase/Frequency Comparator block

$\epsfig{file=CPF_f.eps,height=90pt}$

Tri-state Phase/Frequency Comparator block

Description

This block realizes the phase/frequency comparison between of its two event inputs.

$\begin{figure}\centering \scalebox{0.5}{% \input{cpf_reel.pstex_t}} \end{figure}$

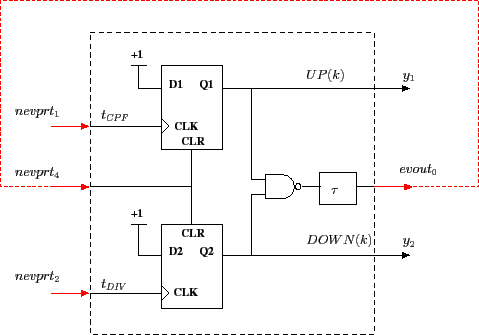

Figure 1: D flip-flop tri-State Phase/Frequency Comparator

At each event the state of the regular outputs can change according to the last state.
When the input events are synchronized, the high state is realized after one delay.
That block realizes the following algorithm that is a derived model from the model find in [1].
More descriptions of this Phase/Frequency comparator can be found in the reference [2].

Dialog box

$\begin{figure}\begin{center} \epsfig{file=CPF_f_gui.eps,width=400pt} \end{center}\end{figure}$

Lenght of anti-backlash pulse (0:No pulse/Length of pulse [s])
The duration of the anti-backlash pulse. If set 0 then the output event port and the third input event port of that block are disable.
Type 'vec' of size 1.

Default properties

always active: no
direct-feedthrough: no
zero-crossing: no
mode: no
regular outputs:
- port 1 : size [1,1] / type 1
- port 2 : size [1,1] / type 1
number/sizes of activation inputs: 2
number/sizes of activation outputs: 0
continuous-time state: no
discrete-time state: yes
object discrete-time state: no
name of computational function: cpf

Interfacing function

MODNUMCOS/macros/scicos_blocks/Pll/CPF_f.sci [view code]

Computational function

MODNUMCOS/routines/pll/cpf.c (Type 4) [view code]

Authors

IRCOM Group Alan Layec

Bibliography

1: A. Demir, ``Analysis and simulation of noise in nonlinear electronic circuits and system,'' Ph.D. dissertation, University of California, Berkeley, 1997.
2: M. Curtin and P. Brien, ``Phase-locked loops for high-frequency receivers and transmitters,'' Analog Dialogue, vol. 33, 1999. [Online]. Available: http://www.analog.com
