QPSKREC

Scicos Block
fr - eng

Quaternary Phase Shift Keying receiver block

$\epsfig{file=QPSKREC_f.eps,height=90pt}$

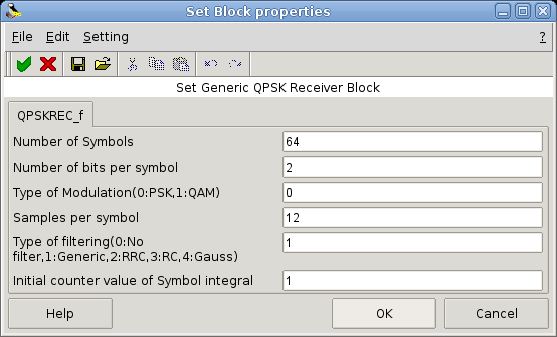

$\begin{figure}\begin{center} \epsfig{file=QPSKREC_f_gui.eps,width=380pt} \end{center}\end{figure}$

Number of Symbols
The number of symbols in the input vector.
Type 'vec' of size 1.
Number of bits per symbol
The number of bits per symbol.
Type 'vec' of size 1.
Type of Modulation(0:PSK,1:QAM)
The type of modulation.
Type 'vec' of size 1.
Samples per symbol
Number of samples per symbol.
Type 'vec' of size 1.
Type of filtering(0:No filter,1:Generic,2:RRC,3:RC,4:Gauss)
Set the type of FIR filter.
Type 'vec' of size 1.
If set 1
$\begin{figure}\begin{center} \epsfig{file=QPSKREC_f_5_1_gui.eps,width=350pt} \end{center} \end{figure}$
- Number of coefficients
  number of coefficients
  Properties : Type vec of size -1.
- Vector of impulse response
  impulse response
  Properties : Type vec of size -1.
- Plot impulse response (0:No/Windows Id)?
  size of the regular input
  Properties : Type vec of size 1.
Initial counter value of Symbol integral
Set the initial sample where the integration of symbol begins.
Type 'vec' of size 1.

always active: no
direct-feedthrough: yes
zero-crossing: no
mode: no
regular inputs:
- port 1 : size [768,1] / type 1
- port 2 : size [768,1] / type 1
regular outputs:
- port 1 : size [64,1] / type 1
number/sizes of activation inputs: 0
number/sizes of activation outputs: 0
continuous-time state: no
discrete-time state: yes
object discrete-time state: no
name of computational function: mpskrec

IRCOM Group Alan Layec
