Continuous Voltage Controlled Oscillator

\epsfig{file=scicos_vco_diagr.eps,height=9cm}

Module


Contents

Description

This diagram realizes an open loop model of a continuous Voltage Controlled Oscillator.
Regular output of the VCO is described with the following formula :

\begin{eqnarray} y_{\rm {s}}\left(t\right)=\cos \left[\left(\omega_{0}t\right)+\int^{t}_{0} k_{\rm {v}} u_{3}\left(\tau\right)d\tau\right], \end{eqnarray}


with $ \omega_{0}$ the free pulsation of the VCO, $ k_{\rm {v}}$ the linear sensitivity (expressed in rad/s) and $ u_{3}$ the control voltage.
Integration of input voltage and detection of crossing are made with the integral block and zeros crossing block of scicos which use the integrated solvers lsoda or daskr.

Context


Fo = 10e6;
To = 1 / Fo;
wo=2*%pi * Fo;
alpha=60e6;
kv=60e6
j_vco=100e6;
N=3;
Nsampl = 80;
Tsampl = To/(Nsampl);
Fsampl = 1 / Tsampl;
Tfin=15*To

Scope Results

\begin{figure}\begin{center} \epsfig{file=scicos_vco_scope_1.eps,width=330.00pt} \end{center}\end{figure}

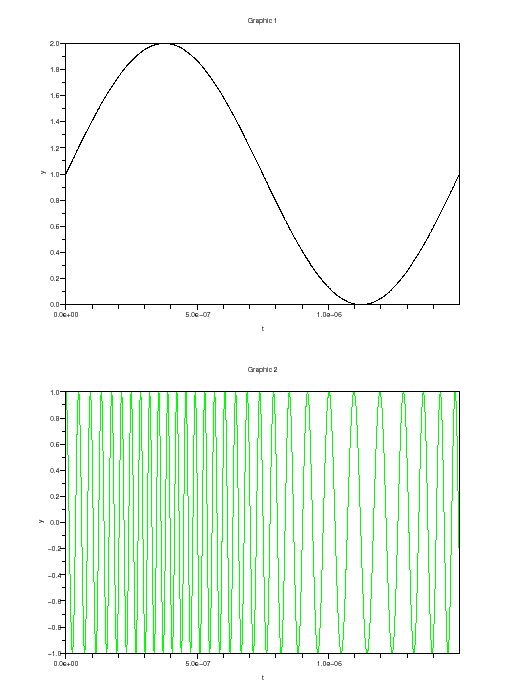

Figure : Input and output voltage of VCO
\begin{figure}\begin{center} \epsfig{file=scicos_vco_scope_2.eps,width=330.00pt} \end{center}\end{figure}

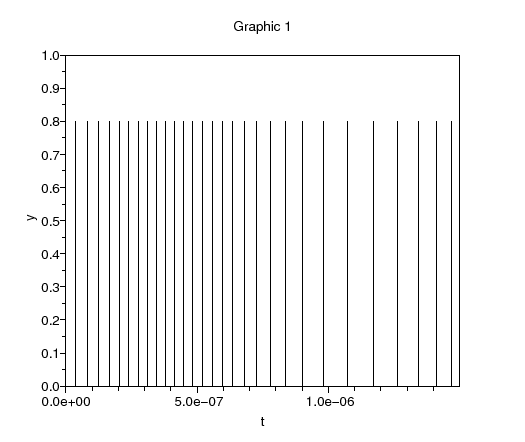

Figure : Events generated by the - to + block
\begin{figure}\begin{center} \epsfig{file=scicos_vco_scope_3.eps,width=330.00pt} \end{center}\end{figure}

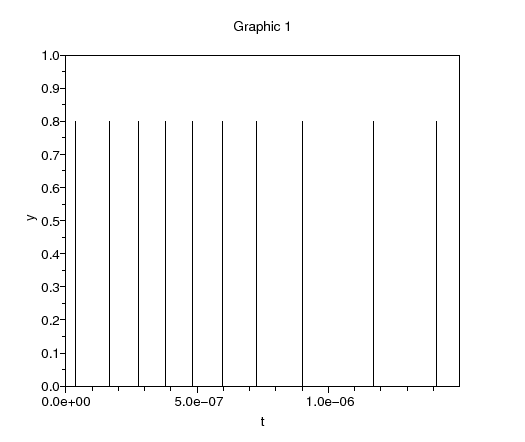

Figure : Events generated by the frequency divider block

See Also

Authors

IRCOM Group Alan Layec
