qam_seq_diagr

Diagramme Scicos
fr - eng

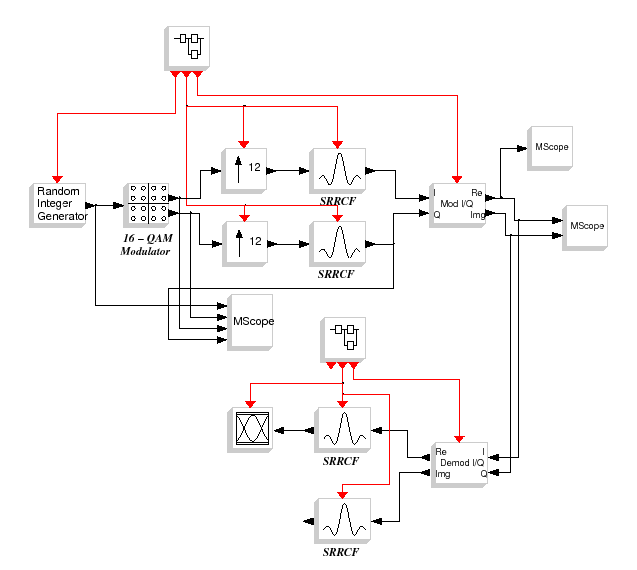

Diagramme éclaté d'une chaine de transmission 16-MAQ 'sample-based'

$\epsfig{file=qam_seq_diagr.eps,width=400pt}$

Tsymbole = 0.1
Nech = 12
Tech = Tsymbole /Nech
Nsampl = 20
Tsampl = Tech/Nsampl

nb_coef=127
r=0.35

wo=2*%pi/(Tsymbole/20)
Tfin=300*Tsymbole

$\begin{figure}\begin{center} \epsfig{file=qam_seq_scope_1.eps,width=330.00pt} \end{center}\end{figure}$

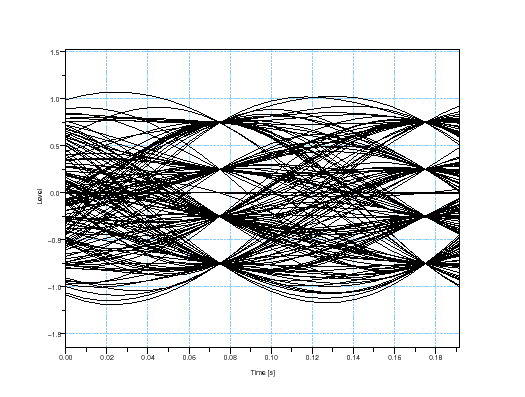

Figure : Résultats des 'scopes'

$\begin{figure}\begin{center} \epsfig{file=qam_seq_scope_2.eps,width=330.00pt} \end{center}\end{figure}$

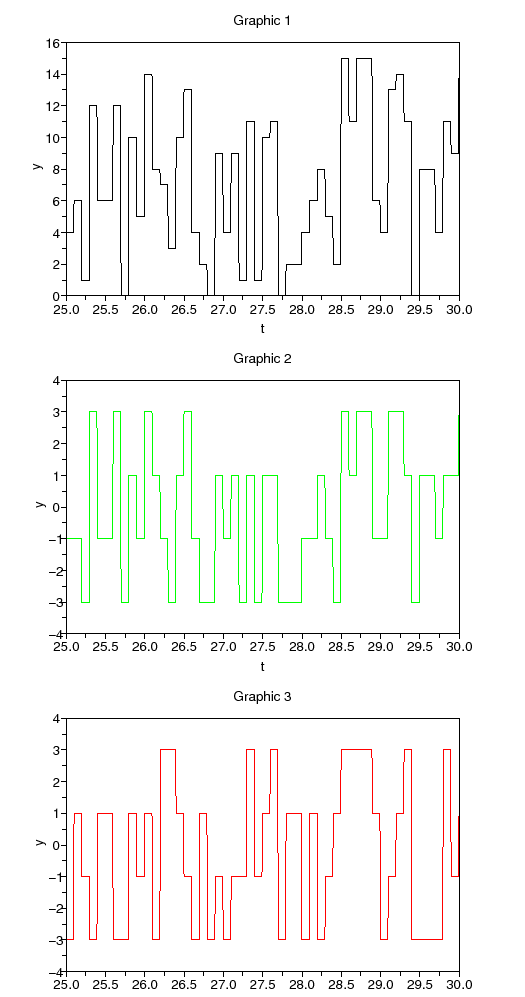

Figure : Résultats des 'scopes'

$\begin{figure}\begin{center} \epsfig{file=qam_seq_scope_3.eps,width=330.00pt} \end{center}\end{figure}$

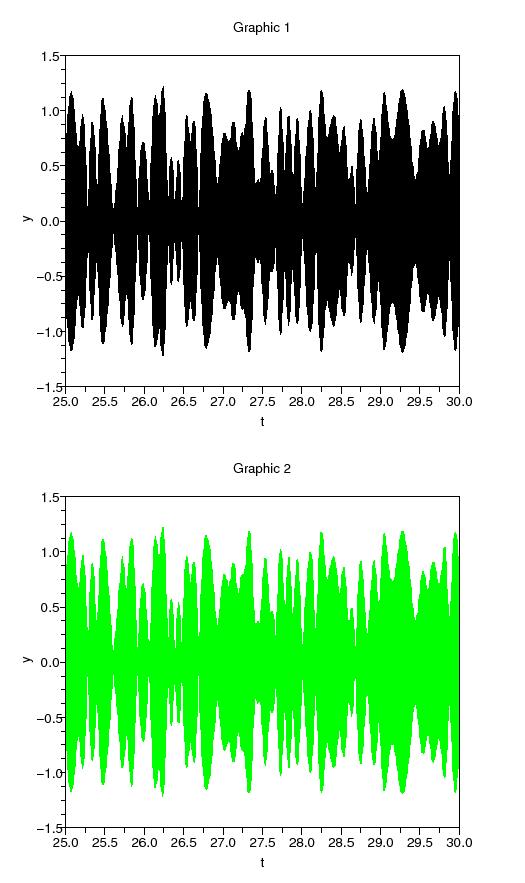

Figure : Résultats des 'scopes'

$\begin{figure}\begin{center} \epsfig{file=qam_seq_scope_4.eps,width=330.00pt} \end{center}\end{figure}$

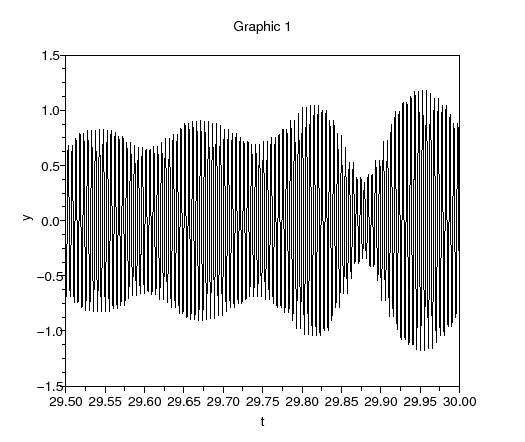

Figure : Résultats des 'scopes'

$\begin{figure}\begin{center} \epsfig{file=qam_seq_scope_5.eps,width=330.00pt} \end{center}\end{figure}$

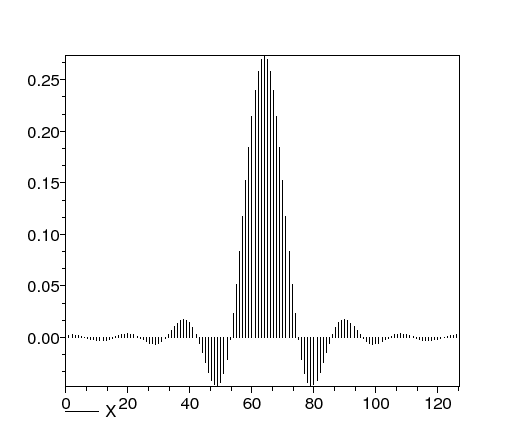

Figure : Résultats des 'scopes'

IRCOM Group Alan Layec
