GENSYMB

Scicos Block
fr - eng

Symbol generator block

$\epsfig{file=GENSYMB_f.eps,height=90pt}$

$\begin{figure}\begin{center} \epsfig{file=GENSYMB_f_gui.eps,width=390pt} \end{center}\end{figure}$

Number of Symbols
The number of symbol to be generated for each output vectors. Use -1 for sequential generator.
Type 'vec' of size 1.
Number of bits per symbol
The number of bits per symbol.
Type 'vec' of size 1.
Type of Modulation(0:PSK,1:QAM)
The type of modulation.
Type 'vec' of size 1.
Type of Upsample(0:No UpSample,1:Upsample,2:Resample)
The type of upsample.
Type 'vec' of size 1.
Samples per symbol
Number of samples per symbol.
Type 'vec' of size 1.
Type of filtering(0:No filter,1:Generic,2:RRC,3:RC,4:Gauss)
Set the type of FIR filter.
Type 'vec' of size 1.
If set 1

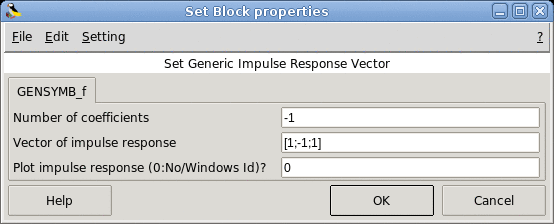

$\begin{figure}\begin{center} \epsfig{file=GENSYMB_f_6_1_gui.eps,width=350pt} \end{center} \end{figure}$
- Number of coefficients
  number of coefficients
  Properties : Type vec of size -1.
- Vector of impulse response
  impulse response
  Properties : Type vec of size -1.
- Plot impulse response (0:No/Windows Id)?
  size of the regular input
  Properties : Type vec of size 1.
Enable external input integer port (0/1)?
If set 1 this parameter enables connection of an external integer number generator.
Type 'vec' of size 1.

A. Layec
