Logistic function block

\epsfig{file=LOGISTIQUE_f.eps,height=90pt}

Contents

Palette

Description

This block realizes the following nonlinear function :

\begin{eqnarray}
y=f\left(u\right)=4\;R\;u(1-u)
\end{eqnarray}

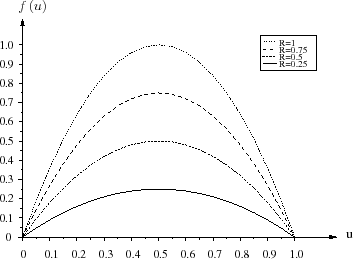

where R is a vector of parameters (first regular input port), u a vector of inputs (second regular input port) and y the vector of outputs. The parametrized plot according to the parameter R is shown in Fig.1.
\begin{figure}\centering
\scalebox{0.6}{%
\input{logistic_fig.pstex_t}}
\end{figure}
Figure 1: Logistic function for R[0.25;0.5;0.75;1]

NB : This block has no dialog box.

Basic blocks equivalent model

\epsfig{file=LOGISTIQUE_f_sbeq.eps,height=5cm}

Default properties

Interfacing function

Computational function

See also

Authors

A. Layec
