Resistive attenuator/coupler

\epsfig{file=atten_diagr.eps,width=400pt}

Module


Contents

Description

This diagram is a power attenuator realised with resistors.

This stage is often found in microwave synthesizer at the power output of the VCO.

Context


//sin wave frequency
freq_sin=2.4e9;
T_sin=1/freq_sin;

//nb of samples per period
Nsampl=50;
Tsampl=T_sin/Nsampl;

//final simulation time
Tfin=10*T_sin

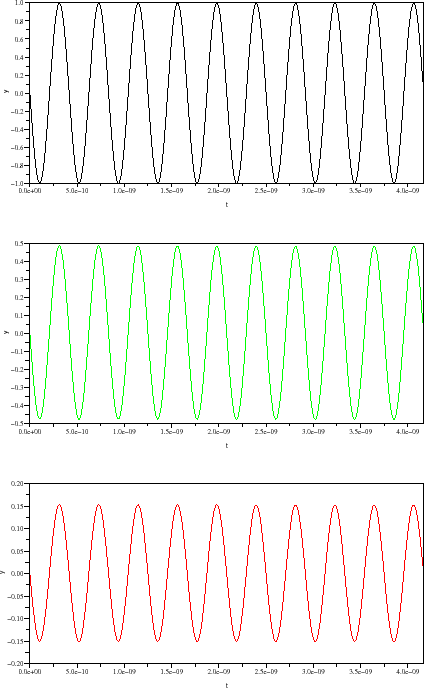

Scope Results

\begin{figure}\begin{center}
\epsfig{file=atten_scope_1.eps,width=330.00pt}
\end{center}\end{figure}
Figure : (a)Input Voltage, (b)first output voltage, (c)second output voltage.

Authors

A. Layec
