Frey's chaotic encoder

$\epsfig{file=frey_diagr.eps,height=8.5cm}$

Te     = 1
Nbit   = 16
Intmax = 2^(Nbit-1)
N      = 1
ci1    = 1000
ci2    = 0
Tfin   = 4490

$\begin{figure}\begin{center} \epsfig{file=frey_scope_1.eps,width=330.00pt} \end{center}\end{figure}$

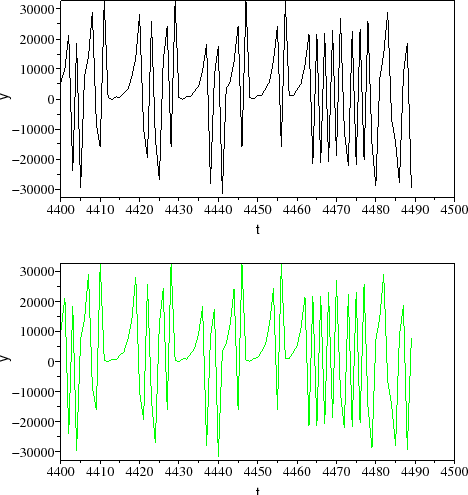

Figure : (a) Time domain waveforms of state variables

$\begin{figure}\begin{center} \epsfig{file=frey_scope_2.eps,width=330.00pt} \end{center}\end{figure}$

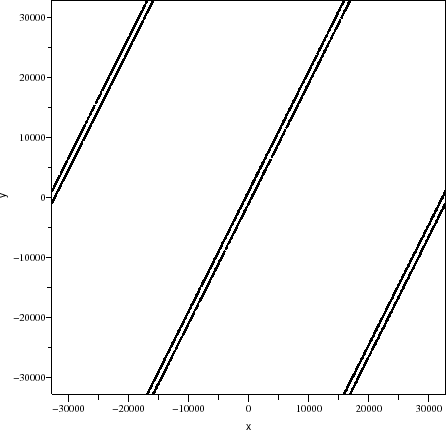

Figure : (b) phase plan

A. Layec

[1] D. R. Frey, ``Chaotic digital encoding: An approach to secure communication,'' IEEE Trans. Circuits Syst. II, vol. 40, no. 10, pp. 660-666, Oct. 1993.
[2] M. J. Werter, ``An improved chaotic digital encoder,'' IEEE Trans. Circuits Syst. II, vol. 45, no. 2, pp. 227-229, Feb. 1998.
