Convolution block

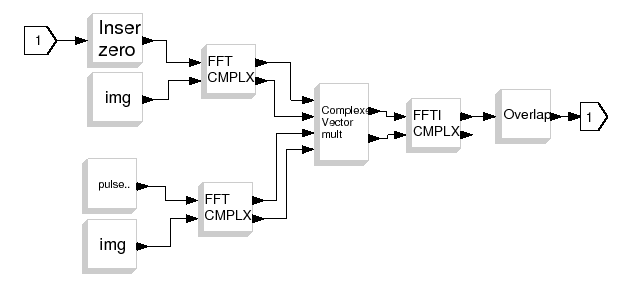

This block realizes a discrete convolution with Fourier Transforms and overlap-add method. The input vector u, of size nu is convolved by an impulse response vector of size nb_coef, defined in the dialogue parameter 'Vector of impulse response'. The result is then delivred in the output vector y of size ny=nu.

**Size of inputs**

The size of the input vector.

Type 'vec' of size 1.**Vector of impulse response**

The vector which defines the impulse response.

Type 'vec' of size -1.**Inherit (no:0, yes:1)**

Herits events by its regular input ports (disable the event input port).

Type 'vec' of size 1.**Plot impulse response (0/1)?**

Plot the impulse response vector in a graphic window. The integer number gives the id of the window.

Type 'vec' of size 1.

**always active:**no**direct-feedthrough:**no**zero-crossing:**no**mode:**no**regular inputs:**

**- port 1 : size [256,1] / type 1****regular outputs:**

**- port 1 : size [256,1] / type 1****number/sizes of activation inputs:**0**number/sizes of activation outputs:**0**continuous-time state:**no**discrete-time state:**yes**object discrete-time state:**no**name of computational function:***convol*

- MODNUMCOS/macros/scicos_blocks/Signal/CONVOLGEN_f.sci [view code]

- MODNUMCOS/routines/signal/convol.c (Type 4) [view code]

- RIFGEN_f - Generic Finite Impulse Response filter block (Scicos Block)
- FFTCMPLX_f - Fast Fourier Transform block (Scicos Block)
- VECTMULTCMPLX_f - Complex vector multiplier block (Scicos Block)
- INSERZEROVEC_f - Zero insertion block (Scicos Block)
- OVERLAP_f - Overlap block (Scicos Block)
- convolr_c - finite impulse response filter by fft and overlap-add method computational routine (Low level routine)
- convolfft_c - signal by impulse response multiplication with fft method computational routine (Low level routine)

- Signal Processing with Scilab. Available : http://www.scilab.org/doc/signal.pdf
