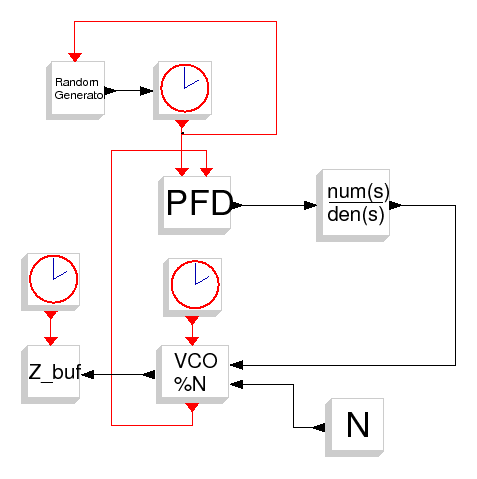

Spectre de sortie d'un synthétiseur de fréquence à rapport de division entier N
synthe_int_sim.cos
scs_m.props.context=[
'F_cpf = 20e6;'
'T_cpf = 1/F_cpf;'
'sig_ref=(2*%pi*0.01/100)'
'Fo = 2.045e9;'
'To = 1 / Fo;'
'wo=2*%pi * Fo;'
'kv = 100.5e6;'
'alpha=6.91e9;'
'beta2=0.15;'
'Fd=2.45e9;'
'N=int(Fd/F_cpf)'
'j_vco=2e6/N;'
'Nsampl = 16;'
'Tsampl = T_cpf/Nsampl;'
'Fsampl = 1 / Tsampl;'
'Icp = 5e-3;'
'Ileak=10e-6;'
'Ileak_sig=1e-12;'
'fn=F_cpf/180;'
'phi=%pi/4;'
'[tau1,tau,tau2]=calcul_3eme_ordre(fn,phi,kv*2*%pi,Icp,N);'
's=poly(0,''s'');'
'num=1+tau1*s;'
'den=tau*s*(1+tau2*s);'
'Nsav=2^21+2^20'
'Tse=Tsampl'
'Tacqui=1e-4'
'Tfin=Tacqui+Nsav*Tse'
];
synthe_int_sim_ctxt.sce
//Define simulation name
sim_name='synthe_int_sim';
//Define simulation path
sim_path='synthe_int_sim';
//Load scicos diagram
load(MODNUM+'/simu/'+sim_path+'/'+sim_name+'.cos');
//Tests for scicos version
ierr = execstr('current_version=get_scicos_version()','errcatch')
if ierr==0 then //scilab > 4.1x
//check version
if type(scs_m)==17 then
if find(getfield(1,scs_m)=='version')<>[] then
if scs_m.version<>'' then
scicos_ver=scs_m.version
end
end
end
if current_version<>scicos_ver then
scs_m=do_version(scs_m,scicos_ver)
end
end
//Define context
exec(MODNUM+'/simu/'+sim_path+'/'+sim_name+'_ctxt.sce');
context=scs_m.props("context");execstr(context);
//Define Simulation end time
scs_m.props.tf=Tfin;
//Define other variables
//Open Log file
u_log=mopen(MODNUM+'/simu/'+sim_path+'/'+sim_name+'.log','a');
//Set flag (for display saved information in scilab window)
flag=1;
//Save inital state of simulation in Log file
wlog_init(u_log,flag);
//Save context in log file
wlog_ctxt(u_log,flag);
//Loop for iterative simulation
j=1;
//Save and display begin simulation date j
wlog_bst(u_log,j,flag);
//substitue context variable to be sweep
//scs_m.props.context=subst_ctxt('varname','varname=');
//Initialise Info and %scicos_context variable
//if exists('Info')==0 then
clear Info;
Info=list();
//end
//if exists('%scicos_context')==0 then %scicos_context=struct(); end
clear %scicos_context;
%scicos_context=struct();
//Do simulation with scicos_simulate
Info=scicos_simulate(scs_m,Info,%scicos_context);
//Load result
myvar=return_state_block(Info,"z_buf");
//Save and display util variable
//wlog_sv(u_log,tlist(['varname'],varvalue),flag);
//Save and Disp final simulation date j
wlog_fst(u_log,j,flag);
//post-processed result
//Save and display post-processed vector(matrix)
//wlog_psv(u_log,tlist(['varname'],varvalue,flag);
//Close final state of simulation in Log file
wlog_final(u_log,flag);
//close log file
mclose(u_log);
plot_spectre2(myvar(1)(1:Nsav),Tsampl,Tacqui,N*F_cpf,0.9e6,10,0);
plot_spectre2(myvar(1)(1:Nsav),Tsampl,Tacqui,N*F_cpf,0.5e6,11,1);
synthe_int_sim.sce
